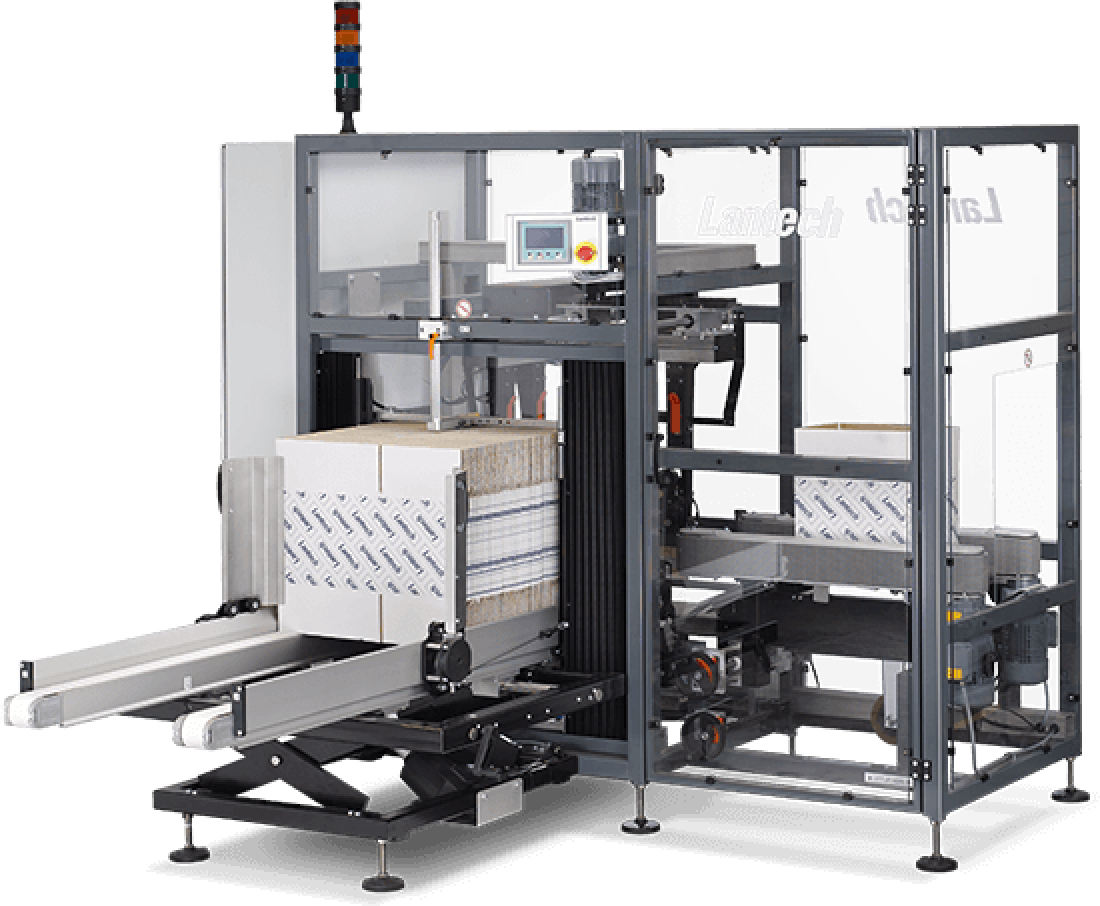

C-1000 Case Erector
Square Cases & No Jams
Square cases are the key to successful secondary packaging.
Lantech Case Erectors are the key to square cases.
Why Square Cases Matter
Square cases pack better, stack better, and protect better. They provide the structural integrity to deliver the performance their designer intended.
Fact: cases lose 30% of their stacking strength if their sides are not aligned.
There are barriers to erecting square cases. Thinner corrugated, temperature and humidity changes, and variations in case blanks can cause cases to be “unsquared” or lead to machine jams.
Lantech Case Erectors overcome these barriers through precise case management and 100% control of cases throughout the entire erecting process, ensuring your cases perform as designed and are produced with maximum efficiency.
How Lantech Case Erectors Make Square Cases
From the moment a blank enters the magazine until it exits the case erector as a properly formed and bottom sealed case, it is under complete control.
A unique pickup frame pulls the case from the magazine and forces it to open so it is square. The flaps are folded before the case moves, making it rigid and locking in its "squareness."
A pusher bar, parallel to the rear wall, delivers it to spring-loaded side belts, which move in or out to compensate for variations in width, and carry it over the sealing device.
Specifications
Performance Throughput Speed 10 Cases/Minute
(30 CPM option)
Case Size Minimum
(Outside Dimensions) 200 mm L
150 mm W
150 mm C
(7 7/8" L x 5 7/8" W x 5 7/8" C)
Case Size Maximum
(Outside Dimensions) 500 mm L
325 mm W
520 mm C
(19 5/8" L x 12 3/4" W x 20 1/2" C)
Case Types RSC, HSC, FEFCO 0200/0201
Flute Types B, C, E or Combinations
Wall Types Single & Double Wall (test for multiple wall)
Top SealTape Lantech TH-Series
Hot Melt Refer to Manufacturer Manual
Service RequirementsAir Supply 6 Bar (80 Psi)
Dedicated Electric Service Req. US 230V, 3ph, 60Hz, Wye w/Ground
Dedicated Electric Service Req. EU 3L-PE-400V-50Hz-Neutral
Machine DataMagazine infeed Capacity 200 Cases (approximate)
Weight 700 kg
(1540 lbs)
Dimensions 1955 mm L
2280 mm W
1800 mm H
(77" L x 89 3/4" W x 70 7/8" H)
Outfeed Pass Height 600 mm +/- 30 mm
(23 5/8" +/- 1 1/8")
Warranty Duration 3 Years, Unlimited Cycles
