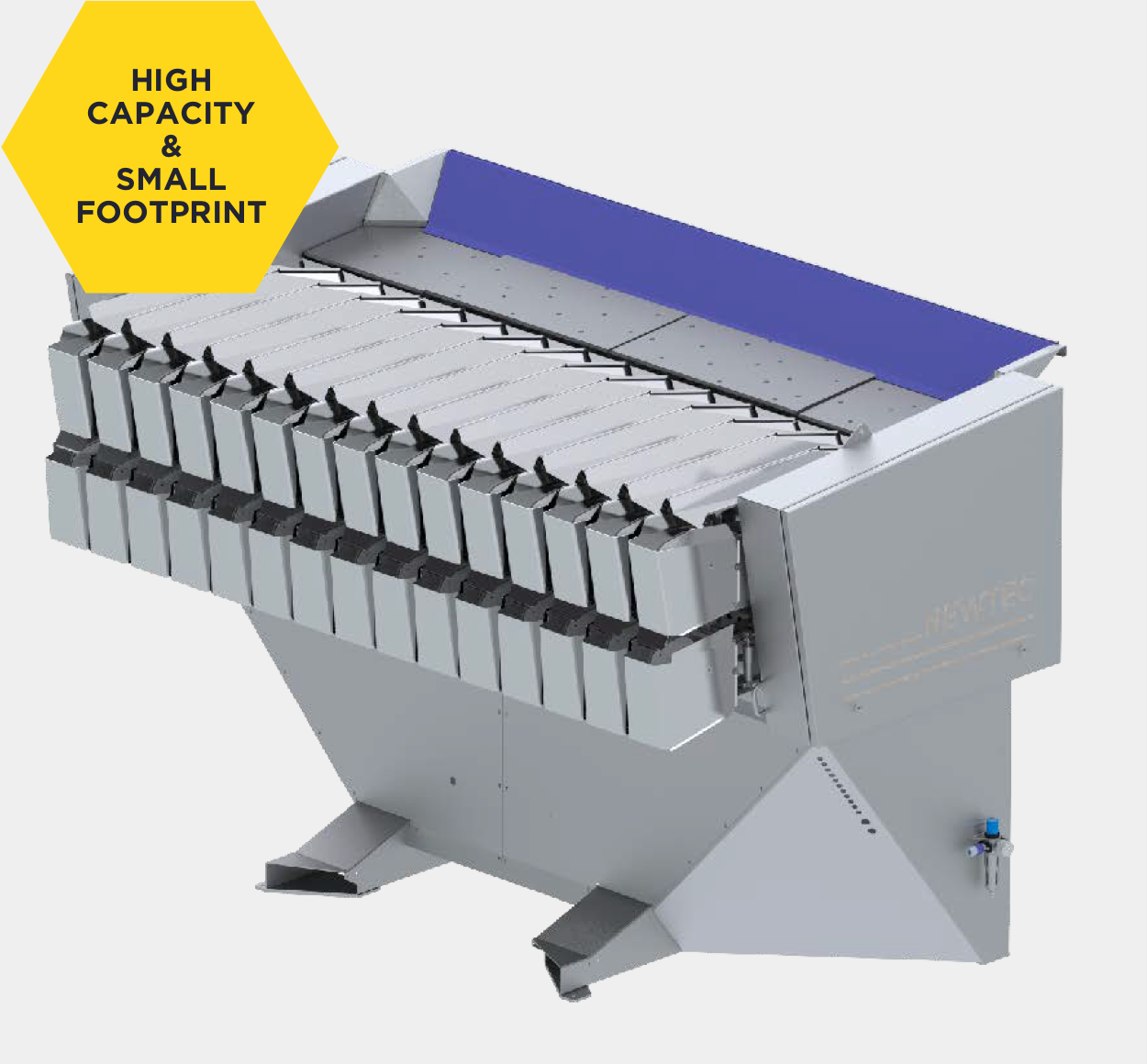

The NEWTEC 4015 Weigher Series is a high speed 15 head weigher for medium sized products and weighments.

• VarioSpeed function to keep pace with infeed unit
• Count-to-target optional kit
• Graphical touchscreen controller with 5m cable for easy reach around the weigher
• NEWTEC WebServices enabled for data collection, archiving and process monitoring
• Fully removeable weigh heads –no tools needed
• Detachable collecting pans in the portion collecting system

Applications

• Avocados, Brussels Sprouts, Garlic, Lemons, Limes, Mandarins, Onions, Peppers, Potatoes and Tomatillos

• Weight: 1010kg
• Width: 2610mm
• Height: 2071mm
• Length: 1877mm
• Air: Connection 3/8"
• Pressure 0.6Mpa / 6 Bar
• Consumption 300Nl/min
• Electrical: 230/400 VAC(N)PE 3.5kW
• Environmental Conditions: 5°C - 40°C / 41°F - 104°F
• Protection Class: IP 54

• 4015B2

• High weighing accuracy: Typical giveaway: less than 0.2%
• High speed – up to 90 portions/min. at 2 kg
• Flexible system to handle large as well as small fruits and vegetables
• Gentle product handling with low drop height
• Quick dismantling and assembly of weighing pans
• Easy access for cleaning and service
• Small footprint
• WebServices enabled for remote servicing and for capturing production data
• MachineLink enabled – from only one touchscreen, either on our Weighing Machine or Check Point, recipe change and start/stop for both machines is possible.

Applications

• Avocados, Brussel Sprouts, Carrots, Garlic, Grapefruit, Kiwi, Lemons, Limes, Mandarins, Onions, Oranges, Parnsips, Peppers, Potatoes, Tomatillos

• Speed: High speed – up to 50 portions/min. at 2 kg
• Capacity 0.5-2.5 kg (depending on product)
• Weigh pan volume: 3 L
• Material: According to the EU rules on food contact materials
• Protection class: IP54
• Air requirement:
  • Connection: 3/8"
  • Min. pressure: 6 bar (0.6 Mpa)
  • Consumption: 65 NL/min.
• Electrical requirement: 3x230 VAC or 3x400 VAC (N) PE 50/60 Hz 3-6 kW
• Environment: 5ºC – 40ºC
• Weight: 550 kg (excl. portion collection system)

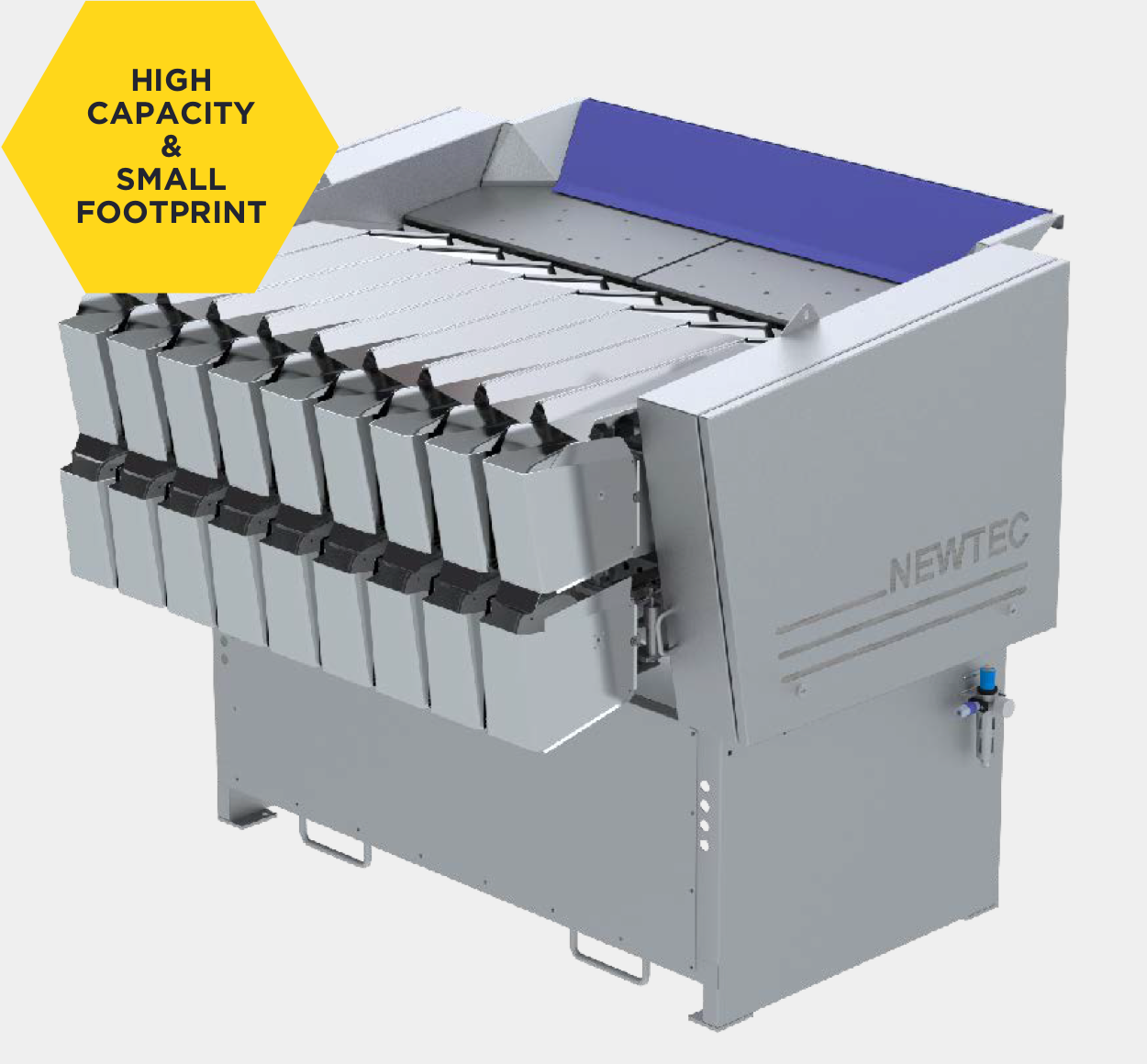

• 4009B2

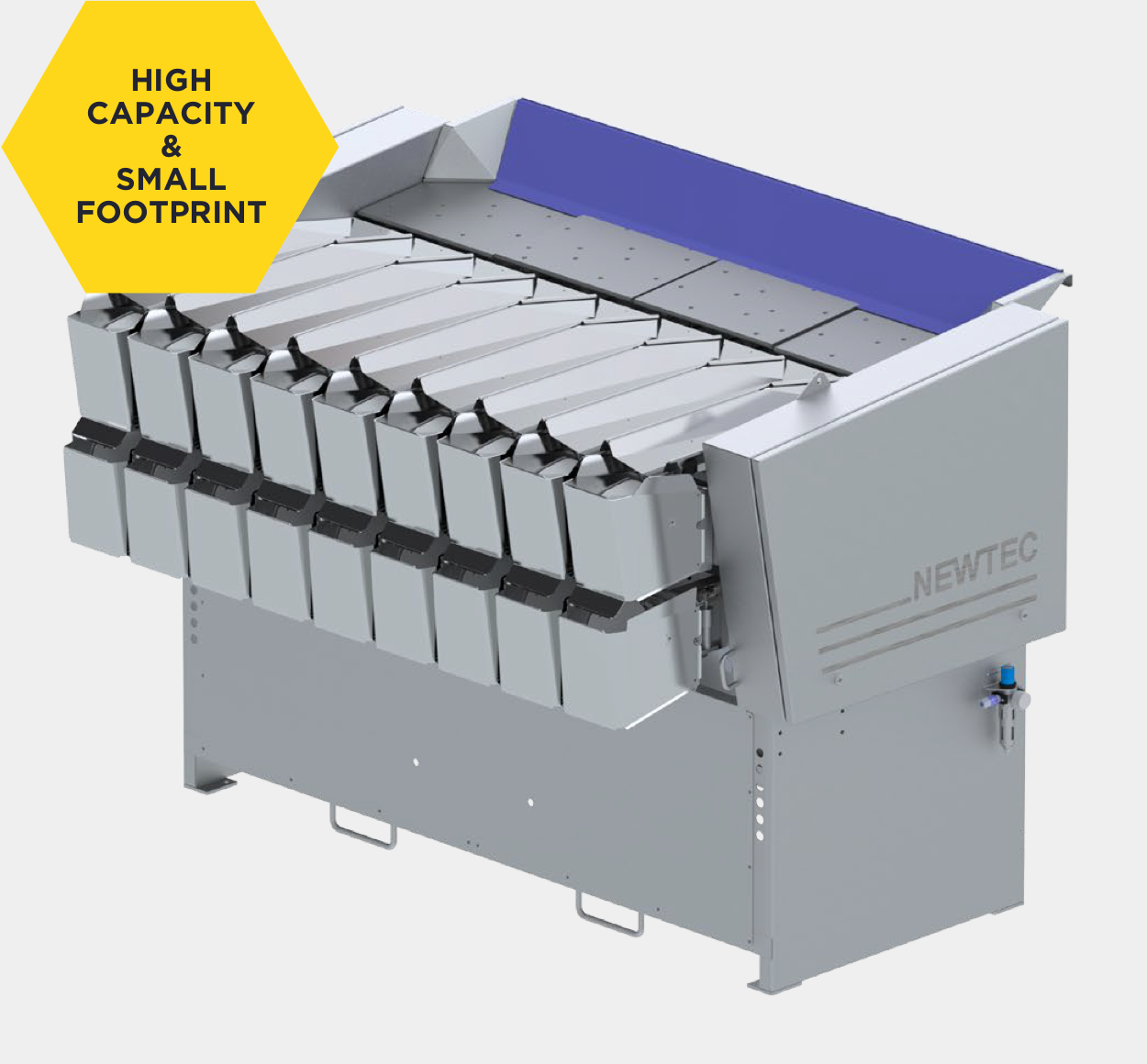

• High weighing accuracy: Typical giveaway: less than 0.2%
• High speed – up to 50 portions/min. at 2.5 kg
• Flexible system to handle large as well as small fruits and vegetables
• Gentle product handling with low drop height
• Quick dismantling and assembly of weighing pans
• Easy access for cleaning and service
• Small footprint
• WebServices enabled for remote servicing and for capturing production data
• MachineLink enabled – from only one touchscreen, either on our Weighing Machine or Check Point, recipe change and start/stop for both machines is possible.

Applications

• Avocados, Brussels Sprouts, Garlic, Lemons, Limes, Mandarins, Onions, Peppers, Potatoes and Tomatillos

• Speed: High speed – up to 50 portions/min. at 2.5 kg
• Capacity: 0.5-5 kg (depending on product)
• Weigh pan volume: 4 L
• Material: According to the EU rules on food contact materials
• Protection class: IP54
• Air requirement:
  • Connection: 3/8"
  • Min. pressure: 6 bar (0.6 Mpa)
  • Consumption: 65 NL/min.
• Electrical requirement: 3x230 VAC or 3x400 VAC (N) PE 50/60 Hz 3-6 kW
• Environment: 5ºC – 40ºC
• Weight: 650 kg (excl. portion collection system)

• 4009XB2

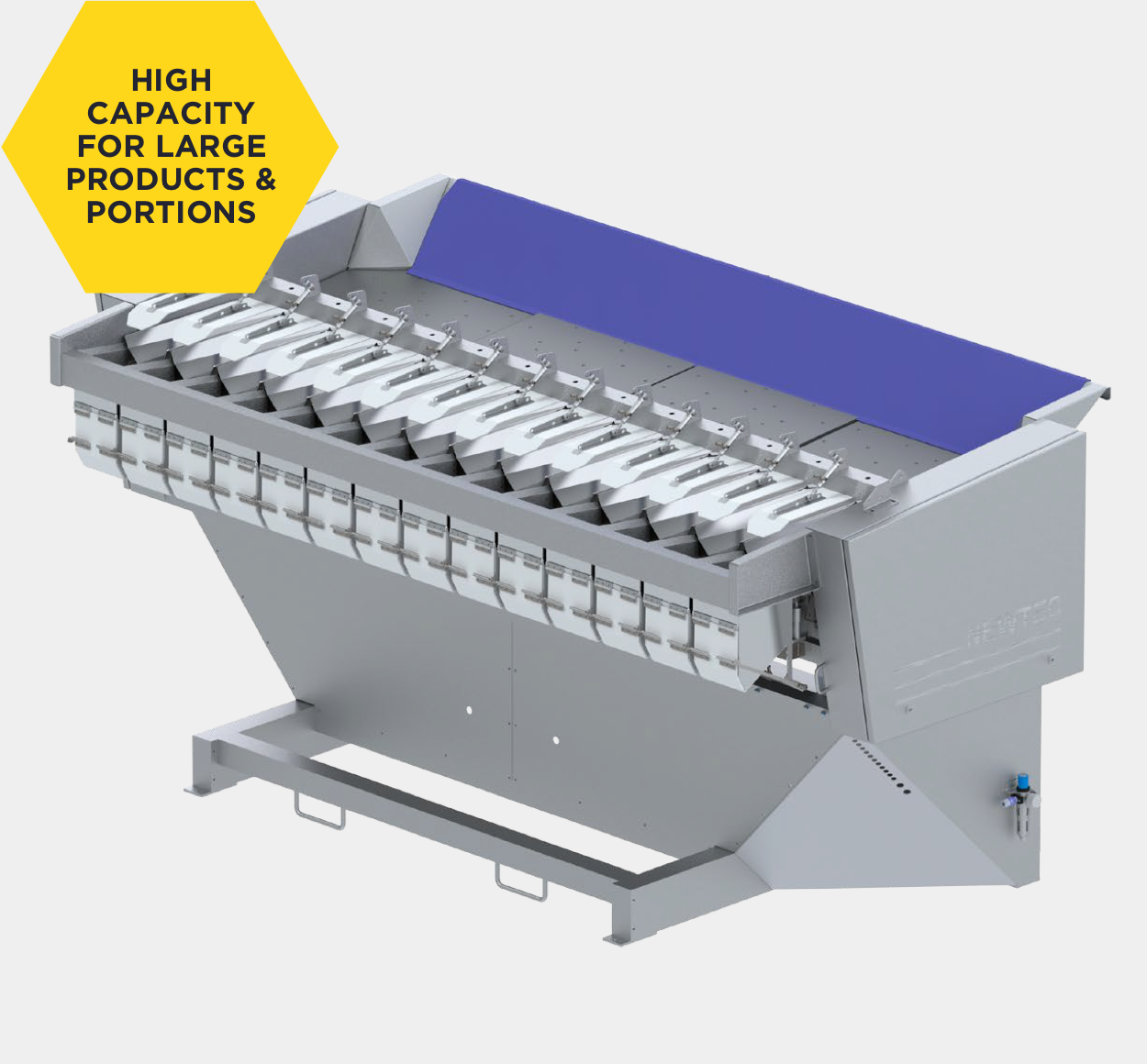

The NEWTEC 4014XB1 is a high speed extra-large weighhead design with a 14 head weigher for large sized products and weighments.

• High weighing accuracy: Typical giveaway: less than 0.2%
• High speed – up to 22 portions/min. at 25 kg
• Large weigh heads for large products and portions
• WebServices enabled for remote servicing and for capturing production data
• MachineLink enabled - from only one touchscreen, either on our Weighing Machine or Check Point, recipe change and start/stop for both machines is possible

Applications

• Brussel Sprouts, Garlic, Grapefruit, Lemons, Limes, Mandarins, Oranges, Onions, and Potatoes

• Speed: High speed – up to 22 portions/min. at 25 kg
• Capacity: 1-25 kg (depending on product)
• Weigh pan volume: 6 L
• Material: According to the EU rules on food contact materials
• Protection class: IP54
• Air requirement:
  • Connection: 3/8"
  • Min. pressure: 6 bar (0.6 Mpa)
  • Consumption: 100 NL/min.
• Electrical requirement: 3x230 VAC or 3x400 VAC (N) PE 50/60 Hz 3-6 kW
• Environment: 5ºC – 40ºC
• Weight: 900 kg (excl. portion collection system)

• 4014XB1

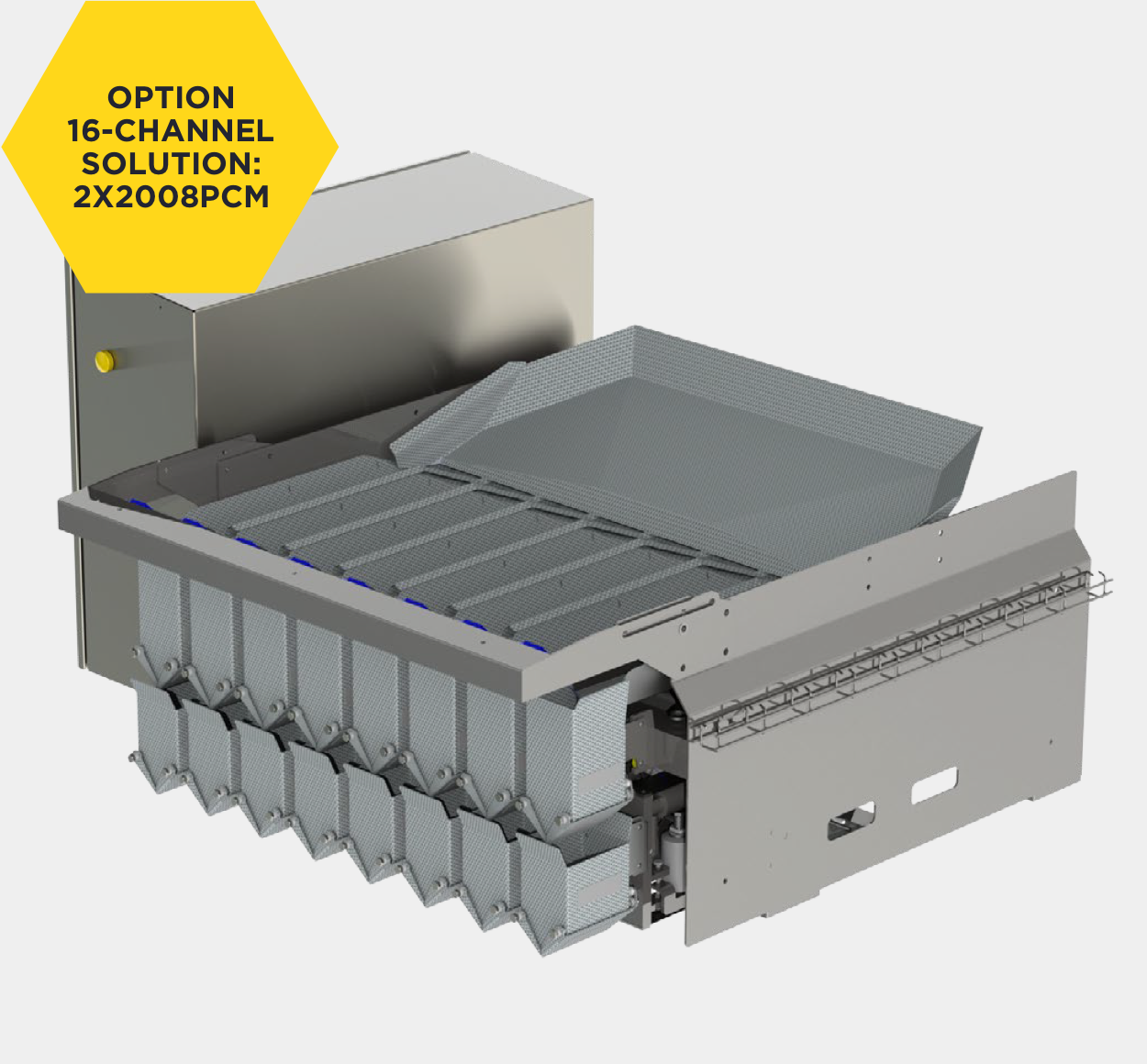

• High weighing accuracy: Typical giveaway: less than 0.4%
• High speed – up to 70 portions/min. at 50 g to 500 g
• Small machine with low product drop height
• Removable chutes for cleaning
• WebServices enabled for remote servicing and for capturing production data
• MachineLink enabled - from only one touchscreen, either on our weighing machine or Check Point, recipe change and start/stop for both machines is possible

• Speed: High speed – up to 70 portions
• Capacity: 50 g – 500 g
• Weigh pan volume: 0.5 L
• Designed for: Check weigher solution
• Material: According to the EU rules on food contact materials
• Air requirement:
  • Connection: 3/8"
  • Min. pressure: 6 bar (0.6 Mpa)
  • Consumption: 25-50 NL/min.
• Electrical requirement: 3x230 VAC or 3x400 VAC (N) PE 50/60 Hz 1.5 kW
• Environment: 5 ºC – 40 ºC
• Weight: Approx. 280 kg

• 2008PCM

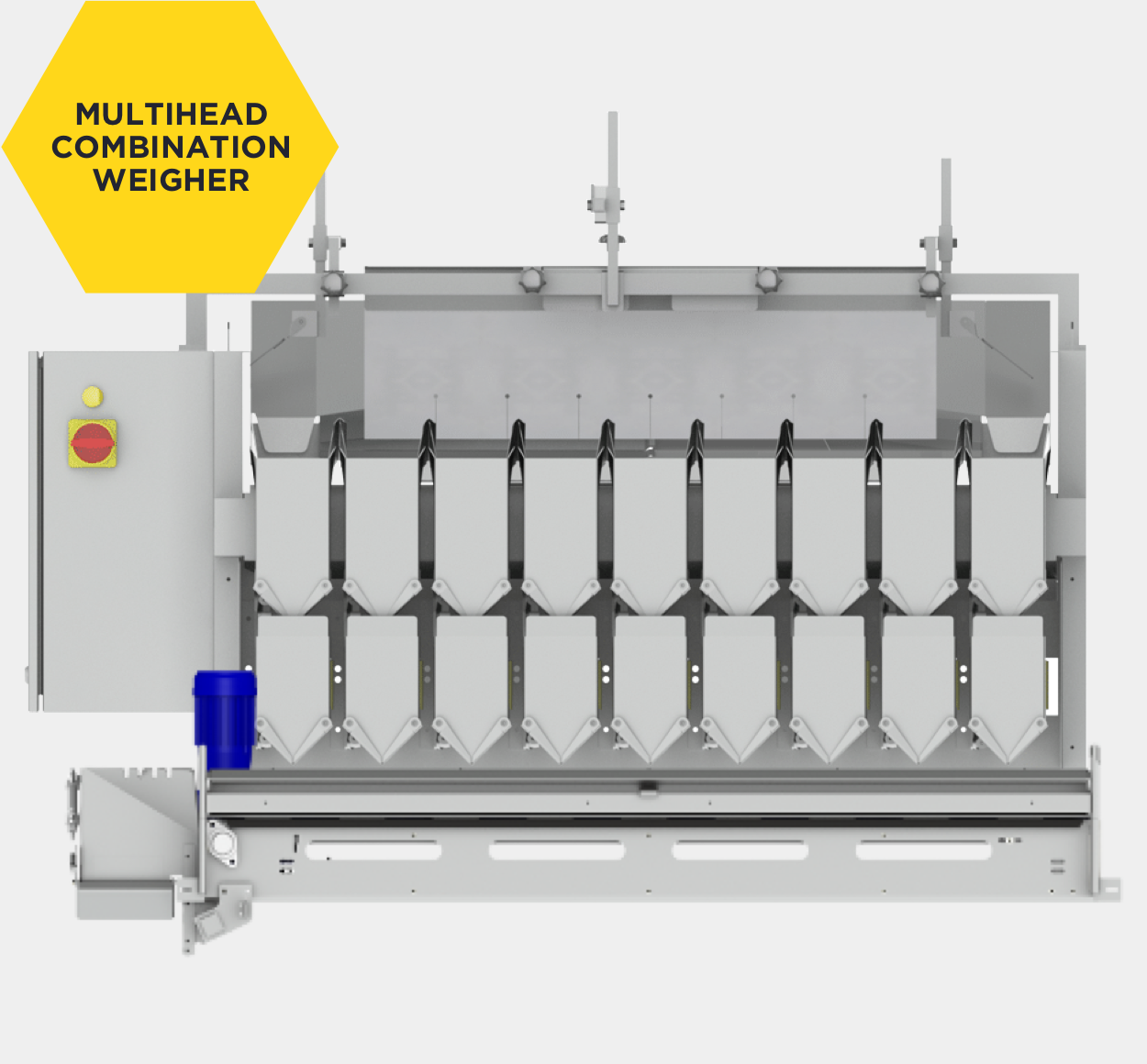

Newtec PC Series is designed for whole, cut or peeled products fresh or frozen.

• Sturdy structure in stainless steel
• Combining both speed and accuracy
• Simply cleaned
• Market leading product handling technology
• Minimum cost of ownership
• Pack weight programming in seconds
• Operator friendly operating system
• Automatic taring
• Minimum giveaway

Applications

• Whole Products
  Beans, Brussel Sprouts, Cherries, Cherry and Grape tomatoes, Garlic, Grapes, Nuts, Potatoes
• Fresh Cut and Peeled Products
  Apples, carrots, cauliflower, Fruit, Onions, Pears, Peppers, Potatoes, Salad
• Frozen Products
  Clams, Fish, Mussels, Rolls, Shrimp, Vegetables

• No. of weigh heads: 9
• Width of weigh heads: 102 mm
• Product weight: 0.25 - 1.00 kg
• Speed: Up to 60 portions/min.
• Product size: Ø: 5-90 mm, L: 5-150 mm
• Dimensions without Portion Collection System: W: 1479 mm, H: 668 mm, D: 1317 mm
• Air requirement:
  • Connection: 3/8"
  • Min. pressure: 6 bar (0.6Mpa)
  • Consumption: 25 - 50 NL/min.
• Electrical requirement: 230/400 VAC +(N)+PE 1- 1,5kW
• Environment: 5ºC – 40ºC
• Weight: 346kg (2009PC-2B)

• PC-Series

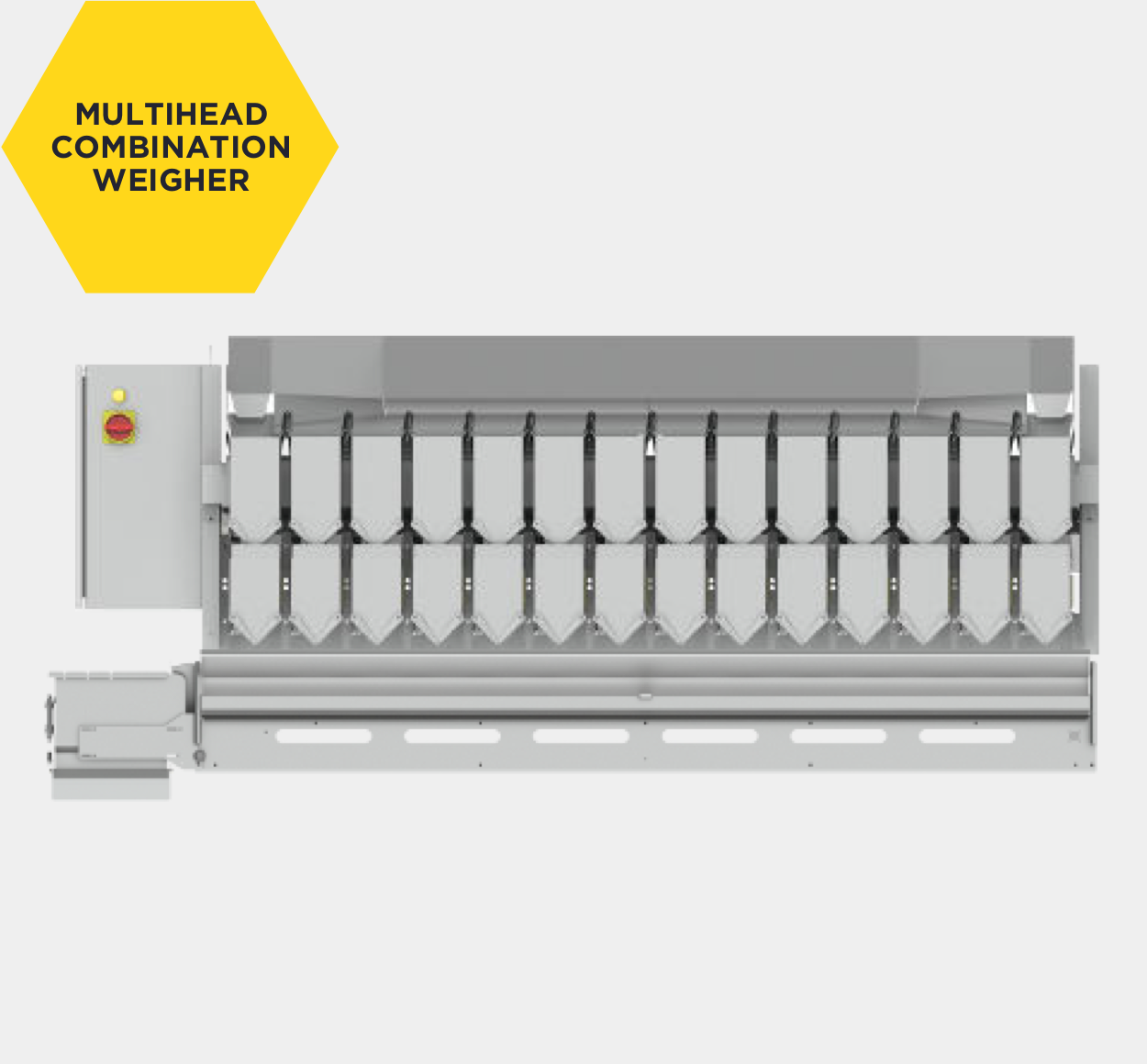

Newtec PC Series is designed for whole, cut or peeled products fresh or frozen.

• Sturdy structure in stainless steel
• Combining both speed and accuracy
• Simply cleaned
• Market leading product handling technology
• Minimum cost of ownership
• Pack weight programming in seconds
• Operator friendly operating system
• Automatic taring
• Minimum giveaway

Applications

• Whole Products
  Beans, Brussel Sprouts, Cherries, Cherry and Grape tomatoes, Garlic, Grapes, Nuts, Potatoes
• Fresh Cut and Peeled Products
  Apples, carrots, cauliflower, Fruit, Onions, Pears, Peppers, Potatoes, Salad
• Frozen Products
  Clams, Fish, Mussels, Rolls, Shrimp, Vegetables

• No. of weigh heads: 14
• Width of weigh heads: 102 mm
• Product weight: 0.25 - 2.00 kg
• Speed: Up to 100 portions/min.
• Product size: Ø: 5-90 mm, L: 5-150 mm
• Dimensions without Portion Collection System: W: 2104 mm, H: 657 mm, D: 1269 mm
• Air requirement:
  • Connection: 3/8"
  • Min. pressure: 6 bar (0.6Mpa)
  • Consumption: 25 - 50 NL/min.
• Electrical requirement: 230/400 VAC +(N)+PE 1- 1,5kW
• Environment: 5ºC – 40ºC
• Weight: 450kg (2014PC-2B)

• PC-Series

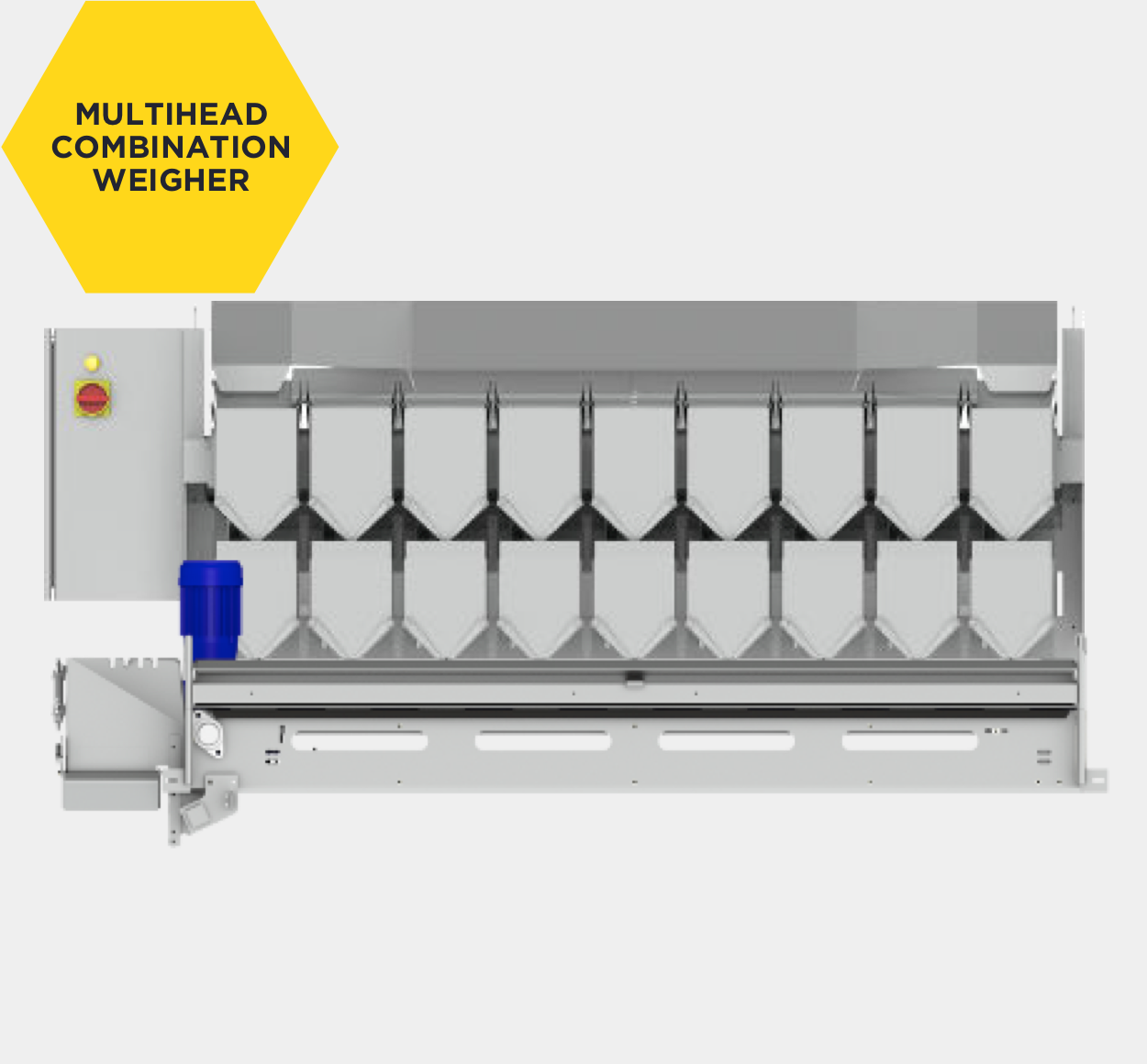

• Robustly constructed in stainless steel
• Designed to handle mixed packs
• Extremely accurate and versatile due to top-up function
• Operator friendly
• Premium reliability

• No. of weigh heads: 9
• Width of weigh heads: 152 mm
• Product weight: 0.25 - 5.00 kg
• Speed: Up to 45 portions/min.
• Product size: Ø: 5-110 mm, L: 5-120 mm
• Dimensions without Portion Collection System: W: 1930 mm, H: 664 mm, D: 1411 mm
• Air requirement:
  • Connection: 3/8"
  • Min. pressure: 6 bar (0.6Mpa)
  • Consumption: 25-50 NL/min.
• Electrical requirement: 230/400 VAC +(N)+PE 1kW
• Environment: 5ºC – 40ºC
• Weight: 504kg

• 2009PCB

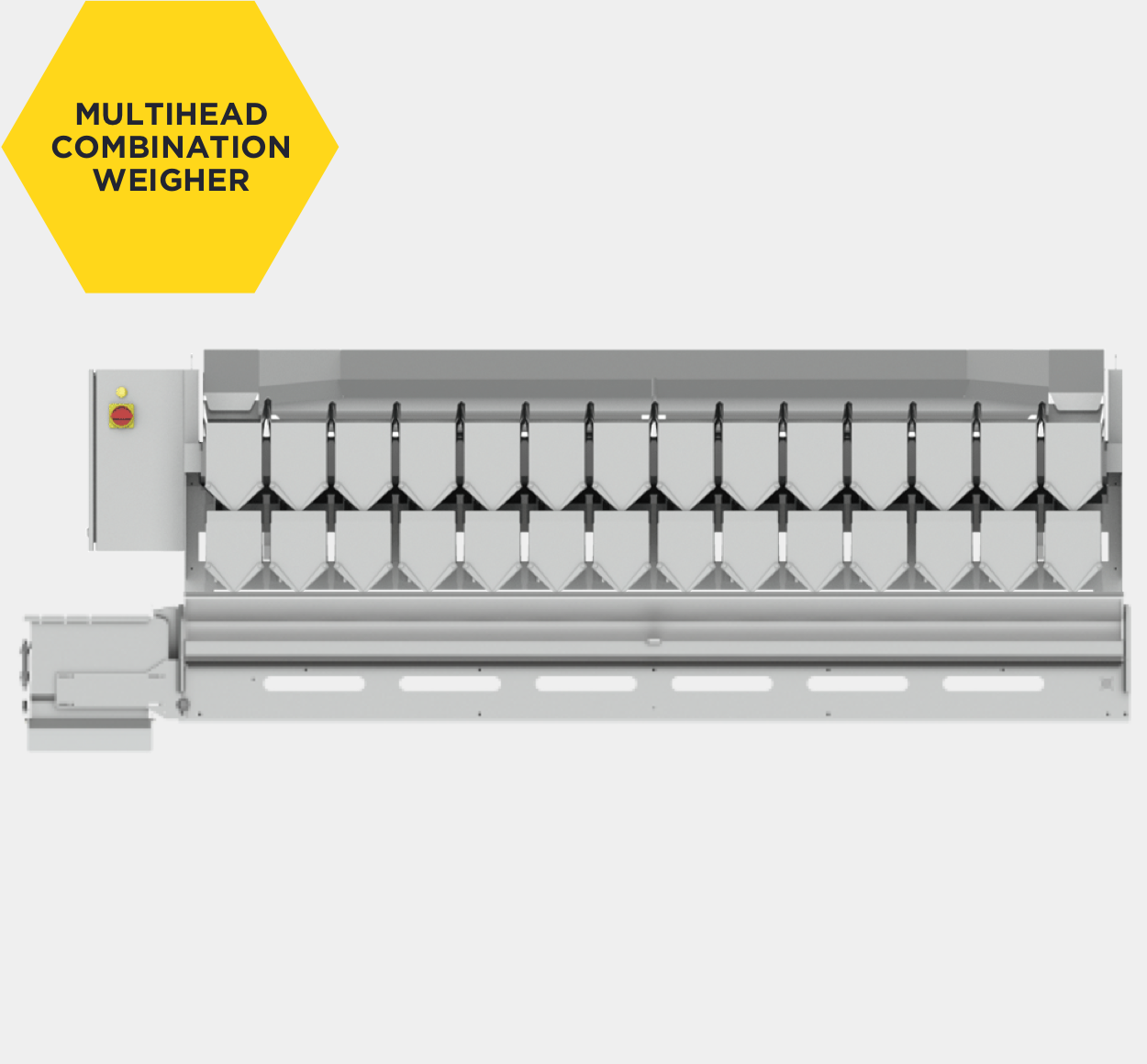

• Robustly constructed in stainless steel
• Designed to handle mixed packs
• Extremely accurate and versatile due to top-up function
• Operator friendly
• Premium reliability

• No. of weigh heads: 14
• Width of weigh heads: 152 mm
• Product weight: 0.5 - 5.00 kg
• Speed: Up to 70 portions/min.
• Product size: Ø: 5-110 mm, L: 5-120 mm
• Dimensions without Portion Collection System: W: 2805 mm, H: 674 mm, D: 1382 mm
• Air requirement:
  • Connection: 3/8"
  • Min. pressure: 6 bar (0.6Mpa)
  • Consumption: 25-50 NL/min.
• Electrical requirement: 230/400 VAC +(N)+PE 1kW
• Environment: 5ºC – 40ºC
• Weight: 504kg

• Not available
